Metal Field Gates
British Made Country Ironwork
In our workshop in Suffolk we produce metal field gates in 5 different opening sizes. These gates are designed to match our 5 rail Estate Fencing with matching spacing between the horizintals. All our gates come as standard with handmade scrolls and a simple stock proof latch.
Our gate prices include posts or hinge and latch plates (for fitting to wood or brick). The sizes listed below refer to the clear opening between the posts. We do not offer painted finish on gates unless collected by the customer. Note: painted items are non-returnable.
Prices listed are only for gates purchased with fencing. Gates purchased outside of fencing orders £POA.
Victorian Reproduction Gates:
1.24m (4ft) Opening Gate
40x12mm spines, 26.9mm tube top horizontal,30x12mm flat bar bottom horizontal, 25x8mm flat bar middle horizontals and braces with 60×60×4 box section posts capped with forged balls.
Unpainted (including posts) £350.00 + Vat
Painted (including posts) £400.00 + Vat
2.04m (6.6ft) Opening Gate
60x15mm spines, 50x50x6mm T section top & bottom horizontals, 25x25x5mm angle-iron middle horizontals and braces with 80×80×6 box section posts capped with forged balls.
Unpainted (including posts) £500.00 + Vat
Painted (including posts) £575.00 + Vat
1.24m (4ft) Opening Gate
40x12mm spines, 26.9mm tube top horizontal,30x12mm flat bar bottom horizontal, 25x8mm flat bar middle horizontals and braces with 60×60×4 box section posts capped with forged balls.
Unpainted (including posts) £350.00 + Vat
Painted (including posts) £400.00 + Vat
2.04m (6.6ft) Opening Gate
40x12mm spines, 40x40x5mm T section top & bottom horizontals, 25x25x5mm angle-iron middle horizontals and braces with 60×60×4 box section posts capped with forged balls.
Unpainted (including posts) £500.00 + Vat
Painted (including posts) £575.00 + Vat
2.36m (7ft,7in) Opening Gate
40x12mm spines, 26.9mm tube top horizontal,30x12mm flat bar bottom horizontal, 25x8mm flat bar middle horizontals and braces with 60×60×4 box section posts capped with forged balls. Comes with drop bars and clapping plate.
Unpainted (including posts) £650.00 + Vat
Painted (including posts) £750.00 + Vat
3.70m (12ft) Opening Gate
60x15mm spines, 50x50x6mm T section top and bottom horizontals, 25x25x5mm angle iron middle horizontals and braces with 80×80x6mm box section posts capped with forged balls.
Unpainted (including posts) £850.00 + Vat
Painted (including posts) £950.00 + Vat
3.96m (13ft) Opening Double Gates
60x15mm spines, 50x50x6 T section top and bottom horizontals, 25x25x5 mm angle iron middle horizontals and braces with 80×80x6mm box section posts capped with forged balls. Comes with drop bars and clapping plate.
Unpainted (including posts) £950.00 + Vat
Painted (including posts) £1100.00 + Vat
Kissing Gates
An attractive way of restricting access. This pictures shows a circular kissing gate frame in cross-braced style. Circular kissing gates can be offset from the fence line, or set within the fence line, as shown
Gate
40x12mm spines, 26.9mm tube top horizontal, 30x12mm flat bar bottom horizontal, 25x8mm flat bar middle horizontals and braces with 60×60×4 box section posts capped with forged balls.
Frame:
Solid 20mm top hoop & 4no 25x8mm flat hoops with 60×60×4 box section posts capped with forged balls
Unpainted (including posts) £600 + Vat
Painted (including posts) £750 + Vat
Catching Posts
Field gates can be ordered with weighted catching posts to hold them in position when open. The posts are concreted into the ground and are designed to catch on the underside of the gate.
Unpainted £100 + Vat
Painted £125 + Vat.
Hinge Plate and Latch Plate
Hinge and latch plates for fitting gates to wooden posts or masonry piers. Please add 2cms to the opening sizes when fitting gates with Hinge & Latch plates. Hinge plates are 105cms long which is the same as the gate spine for easy alignment. £100 + Vat if sold separately or included with gate price if sold instead of posts. For double gates we can supply a set of 2 hinge plates.
Hinge Plate and Latch Plate: £125 + Vat
2 x Hinge Plates: £200 + Vat
Field Gate Kits
We supply key components so you can fabricate gates to any size. Kit contains only the components shown in the picture. You will need to supply infill.
Ideal for fabricating your own bespoke gates when self-installing our estate fencing.
Small Gate Kit (up to 2m openings) £215 + Vat
2 x 60×60 posts capped with an 80mm solid ball • 2 x gate spines (40×12) • 2 x scrolls • 2 x peg hinges • 2 x eye bolts • Latch bolt • Latch taker • Latch support with stock proof tab
Large Gate Kit (2m to 4m opening) £295 + Vat
2 x 80×80 posts capped with an 100mm solid ball • 2 x gate spines (50×15) • 2 x scrolls • 2 x peg hinges • 2 x eye bolts • Latch bolt • Latch taker • Latch support with stock proof tab
Small Double Gate Kit (2m to 4m opening) £305 + Vat
2 x 60×60 posts capped with an 80mm solid ball • 4 x gate spines (40×12) • 4 x scrolls • 4 x peg hinges • 4 x eye bolts • Latch bolt • Latch support with stock proof tab • Clapping Plate • 2 x 16mm drop bars + 4 drop bar guides
Large Double Gate Kit (4m to 8m opening)£355 + Vat
2 x 80×80 posts capped with an 100mm solid ball • 4 x gate spines (50×15) • 4 x scrolls • 4 x peg hinges • 4 x eye bolts • Latch bolt • Latch support with stock proof tab • Clapping Plate • 2 x drop bars + 4 drop bar guides
Note: Kits are unpainted mild steel and require additional bar for horizontals and bracing.
Decorative rosette or flower (for the centre of cross braces) can be added to the kit: £6.00 + vat each. Please specify style when ordering.
Gate Kits with Infill
These include the infill required to fully fabricate your own gates. Angle and T-Section cut (slightly larger) for horizontals and bracing for your specified gate opening size.
Small Gate Kit with infill (up to 2m openings) : £350 + Vat
Includes: 2 x 80x80mm posts capped with an 80mm solid ball • 2 x gate spines (60×15) • 2 x scrolls • 2 x peg hinges • 2 x eye bolts • Latch bolt • Latch taker • Latch support with stock proof tab • T-section & Angle bars
Please specify opening size when ordering
Large Gate Kit with infill (2m to 4m opening) : £495 + Vat
Includes: 2 x 80x80mm posts capped with an 100mm solid ball • 2 x gate spines (60×15) • 2 x scrolls • 2 x peg hinges • 2 x eye bolts • Latch bolt • Latch taker • Latch support with stock proof tab • T-section & Angle bars • vertical brace (50×12)
Please specify opening size when ordering
Small Double Gate Kit with infill (2m to 4m opening) : £625 + Vat
Includes: 2 x 80×80mm posts capped with an 80mm solid ball • 4 x gate spines (60×15) • 4 x scrolls • 4 x peg hinges • 4 x eye bolts • Latch bolt • Latch support with stock proof tab • Clapping Plate • 2 x 16mm drop bars + 4x drop bar guides + 2x drop bar holders + 2x drop bar stops • T-section & Angle bars
Please specify opening size when ordering

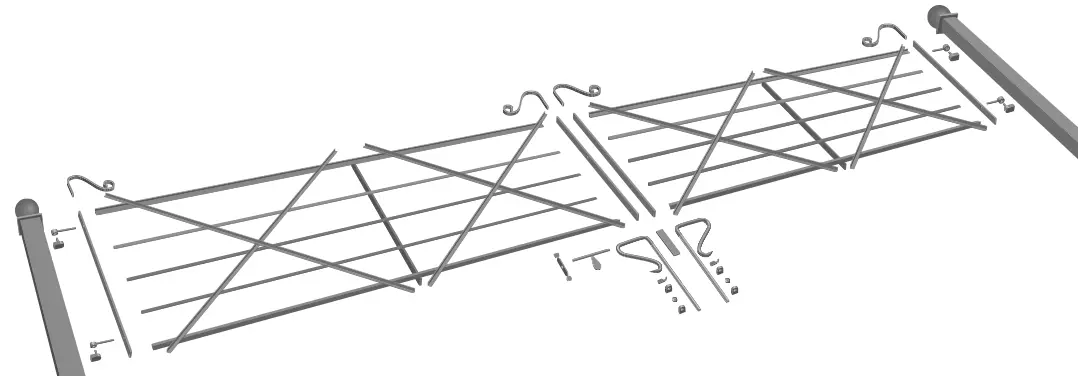

Large Double Gate Kit with infill (4m to 8m opening) : £745 + Vat
Includes: 2 x 80x80mm posts capped with an 100mm solid ball • 4 x gate spines (60×15) • 4 x scrolls • 4 x peg hinges • 4 x eye bolts • Latch bolt • Latch support with stock proof tab • Clapping Plate • 2 x drop bars + 4 drop bar guides + 2x drop bar holders + 2x drop bar stops • T-section & Angle bars • 2x vertical braces (50×12)
Please specify opening size when ordering
Decorative rosette or flower (for the centre of cross braces) can be added to the kit: £6.00 + vat each. Please specify style when ordering.
Handmade Gate Scrolls
Handmade scolls used on our gates are now available to purchase separately. Made from 30x5mm bar.
Price: £15 + vat each
Note: Delivery charges will apply.
Gates in unpainted/rust finish
Customer Gate Installations
Our 13ft (3.96m) unpainted double gates, with hinge and latch plates, installed between stone piers by a customer in Cheltenham, Gloucestershire.
